Guest System

The guest system lets anonymous players join the game without registration. This page covers the flow from the rooms configuration to the guest form, the guest login and the automatic cleanup of guest accounts.

Enabling guest mode in the admin panel

With guest mode on, the game homepage shows a guest form next to the login and the registration forms: a new player uses it to enter the game right away with a temporary account. Guest mode is controlled by a few Config rows, all editable from the admin panel.

Log in to the admin panel at /reldens-admin with an admin user (the path can be changed with the RELDENS_ADMIN_ROUTE_PATH environment variable).
In the sidebar open Settings > Config, or go directly to /reldens-admin/config.
Type guest in the search box at the top of the list and click Filter: the list shows only the guest rows.
Click the edit icon of the general/users/allowGuest row (scope client), set the Value to 1 to enable the guest form (or 0 to disable it) and click Save.
Edit the players/guestUser/allowOnRooms row (scope server) to choose where the guests can play: 1 opens every room to the guests, 0 limits them to the rooms marked as guest rooms.
With allowOnRooms set to 0, open Rooms > Rooms, edit each room the guests can enter and add "allowGuest": true to its CustomData JSON (for example {"allowGuest": true}). The rooms without the flag are not offered to the guests.
Optionally tune the limit of guest accounts per address (security/guests/maxPerIp) and the automatic removal of the unused guest accounts (players/guestUser/cleanupEnabled, players/guestUser/cleanupAfterMs and players/guestUser/cleanupIntervalMs).
Restart the server so the new values are loaded (Config File Generation below explains how the client values reach the browser).

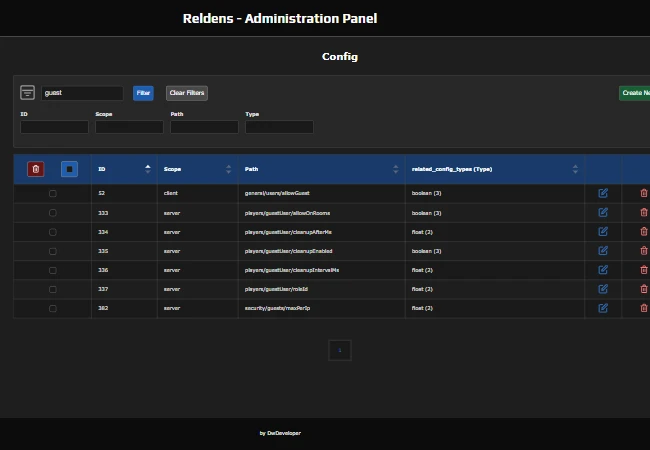

Admin Panel - Config list filtered by guest

If the guest form does not show up after the restart, check that at least one room is available to the guests: the form is hidden when the guest rooms list is empty.

Configuration reference

The rows listed by the guest search, with the values installed by the basic configuration:

general/users/allowGuest (client, boolean, 1) - shows the guest form and accepts the guest logins.
players/guestUser/allowOnRooms (server, boolean, 1) - 1 every room accepts guests, 0 only the rooms with "allowGuest": true in their CustomData.
players/guestUser/roleId (server, 2) - role given to the guest accounts, used to recognize them on login and on cleanup.
security/guests/maxPerIp (server, 20) - limit of guest accounts created from the same address, see IP Lists and Login Blocks.
players/guestUser/cleanupEnabled (server, boolean, 0) - set it to 1 to remove the unused guest accounts automatically.
players/guestUser/cleanupAfterMs (server, 604800000, 7 days) - time without activity before a guest account is removed.
players/guestUser/cleanupIntervalMs (server, 3600000, 1 hour) - time between two cleanup runs, it must be lower than the cleanup time.

Two optional rows are not installed, add them with Create New on the Config list when you need them:

general/users/allowGuestUserName (scope client, type boolean, value 1) - the name typed by the guest is appended to the generated guest username.
players/guestsUser/emailDomain (scope server, type string) - email domain of the guest accounts, @guest-reldens.com when the row is missing.

The complete behavior of each option is described in Configuration Options below.

Code integration (advanced)

The sections below describe how the guest system works internally: the guest rooms filtering, the config file sent to the client, the guest login and the cleanup of the guest accounts.

Database Configuration

Rooms table - customData field

Each room can be marked as guest-accessible via the customData JSON field in the rooms table:

{
  "allowGuest": true
}

The flag is only used when the server/players/guestUser/allowOnRooms config row is 0. The basic configuration installs that row as 1, which allows guests on every room and ignores customData.allowGuest (see Guest room filtering below).

Example SQL:

UPDATE rooms SET customData = '{"allowGuest": true}' WHERE name = 'town';

Server-Side Flow

Rooms loading (lib/rooms/server/manager.js)

RoomsManager.loadRooms() loads the rooms with their change and return points relations, builds a model per enabled room with RoomModelBuilder.build() and indexes the models by id and by name. Then it builds the guest and the selector lists:

this.loadedRooms = rooms;
this.loadedRoomsById = roomsById;
this.loadedRoomsByName = roomsByName;
this.availableRoomsGuest = this.fetchGuestRooms(roomsByName);
let registrationRooms = this.filterRooms(true);
this.registrationAvailableRooms = this.extractRoomDataForSelector(registrationRooms);
this.registrationAvailableRoomsGuest = this.extractRoomDataForSelector(this.fetchGuestRooms(registrationRooms));
let loginRooms = this.filterRooms(false);
this.loginAvailableRooms = this.extractRoomDataForSelector(loginRooms);
this.loginAvailableRoomsGuest = this.extractRoomDataForSelector(this.fetchGuestRooms(loginRooms));
return this.loadedRooms;

filterRooms(forRegistration) reads the client/rooms/selection/registrationAvailableRooms or the client/rooms/selection/loginAvailableRooms config row (both installed as *) and always returns an object keyed by room name: loadedRoomsByName for *, otherwise filterValidRooms() keeps the configured room names that are loaded, in the same shape:

filterValidRooms(configuredRooms, createdRooms)
{
    let validRooms = {};
    for(let roomName of configuredRooms){
        if(sc.hasOwn(createdRooms, roomName)){
            validRooms[roomName] = createdRooms[roomName];
        }
    }
    return validRooms;
}

extractRoomDataForSelector() turns each of those objects into the array of {name, title} entries sent to the client.

Guest room filtering

RoomsManager.fetchGuestRooms():

fetchGuestRooms(availableRooms)
{
    if(this.allowGuestOnRooms){
        return availableRooms;
    }
    return this.filterGuestRooms(availableRooms);
}

RoomsManager.filterGuestRooms():

filterGuestRooms(availableRooms)
{
    if(!sc.isObject(availableRooms)){
        Logger.debug('The provided "availableRooms" is not an object.', availableRooms);
        return {};
    }
    let validRooms = {};
    for(let i of Object.keys(availableRooms)){
        let room = availableRooms[i];
        let customData = room.customData || {};
        if(sc.get(customData, 'allowGuest')){
            validRooms[room.roomName] = room;
        }
    }
    return validRooms;
}

room.customData is already a parsed object: RoomModelBuilder.build() runs sc.toJson(room.customData, {}) when the room model is created.

Global setting:

Config path: server/players/guestUser/allowOnRooms, read by RoomsManager.setupConfiguration() as this.allowGuestOnRooms.
Installed as 1 by the basic configuration; the code fallback when the row is missing is false.
If 1, all rooms allow guests and customData.allowGuest is ignored.
If 0, only rooms with customData.allowGuest = true allow guests.

The same fetchGuestRooms() result feeds BOTH the client room selector lists and the server join gate (availableRoomsGuest, checked by RoomLogin.validateRoom() in lib/rooms/server/login.js when a guest joins a scene room). The server gate is the source of truth: the client list is always a subset of what the gate accepts, so a guest is never shown a room the server would reject.

Config assignment

RoomsManager.defineRoomsInGameServer(), after all rooms are loaded and defined:

// save rooms lists data for clients:
if(this.config.client?.rooms?.selection){
    this.config.client.rooms.selection.availableRooms = {
        registration: this.registrationAvailableRooms,
        registrationGuest: this.registrationAvailableRoomsGuest,
        login: this.loginAvailableRooms,
        loginGuest: this.loginAvailableRoomsGuest
    };
}

Called by: ServerManagersInitializer.defineServerRooms(), which calls RoomsManager.defineRoomsInGameServer().

Config File Generation

Timing (critical)

Execution order inside ServerManager.startGameServerInstance() (lib/game/server/manager.js):

new ServerManagersInitializer(this).initializeManagers()
- Calls defineServerRooms().
- Guest rooms configured in this.configManager.client.rooms.selection.availableRooms.
Config file created and client bundled, both inside the same RELDENS_CREATE_CONFIG_FILE block (default 1, 0 skips both):
- HomepageLoader.createConfigFile() with guest rooms data.
- themeManager.createClientBundle() runs the Parcel bundle (only when RELDENS_ALLOW_RUN_BUNDLER is 1).

if(1 === Number(process.env.RELDENS_CREATE_CONFIG_FILE || 1)){
    let populatedConfigFile = HomepageLoader.createConfigFile(
        this.themeManager.projectThemePath,
        Object.assign({}, this.configManager.gameEngine, {client: this.configManager.client})
    );
    if(!populatedConfigFile){
        Logger.error('Failed to create config file for homepage.');
    }
    await this.themeManager.createClientBundle();
}

Config file creation (lib/game/server/homepage-loader.js)

HomepageLoader.createConfigFile():

static createConfigFile(projectThemePath, initialConfiguration)
{
    let configFilePath = FileHandler.joinPaths(projectThemePath, 'config.js');
    let configFileContents = 'window.reldensInitialConfig = '+sc.toJsonString(initialConfiguration)+';';
    let writeResult = FileHandler.writeFile(configFilePath, configFileContents);
    if(!writeResult){
        Logger.error('Failed to write config file: '+configFilePath);
        return false;
    }
    Logger.info('Config file created: '+configFilePath);
    return true;
}

Output file: theme/<projectThemeName>/config.js (ThemeManager.projectThemePath, for example theme/default/config.js). Content structure:

window.reldensInitialConfig = {
    /* ...configManager.gameEngine properties, spread at the top level... */
    client: {
        rooms: {
            selection: {
                availableRooms: {
                    registration: [/* {name, title} per room */],
                    registrationGuest: [/* {name, title} per guest-allowed room */],
                    login: [/* {name, title} per room */],
                    loginGuest: [/* {name, title} per guest-allowed room */]
                }
            }
        }
    }
};

Client-Side Flow

Config loading (lib/game/client/game-manager.js)

In the GameManager constructor:

this.config = new ConfigManager();
let initialConfig = this.gameDom.getWindow()?.reldensInitialConfig || {};
sc.deepMergeProperties(this.config, initialConfig);

Data source: window.reldensInitialConfig from the theme config.js (see Config file creation above).

Client start (lib/game/client/handlers/client-start-handler.js)

ClientStartHandler.clientStart() activates the registration form and then the guest form before the other handlers:

let registrationForm = new RegistrationFormHandler(this.gameManager);
registrationForm.activateRegistration();
let guestForm = new GuestFormHandler(this.gameManager);
guestForm.activateGuest();

Called by: GameManager.clientStart() on DOMContentLoaded.

Guest form activation (lib/game/client/handlers/guest-form-handler.js)

GuestFormHandler.activateGuest():

activateGuest()
{
    if(!this.form){
        return false;
    }
    let availableGuestRooms = this.gameManager.config.getWithoutLogs(
        'client/rooms/selection/availableRooms/registrationGuest',
        {}
    );
    if(
        !this.gameManager.config.get('client/general/users/allowGuest')
        || 0 === Object.keys(availableGuestRooms).length
    ){
        this.form.classList.add('hidden');
        return true;
    }
    ErrorsBlockHandler.reset(this.form);
    let selectors = GameConst.SELECTORS;
    this.form.addEventListener('submit', (e) => {
        e.preventDefault();
        if(!this.form.checkValidity()){
            return false;
        }
        this.form.querySelector(selectors.LOADING_CONTAINER).classList.remove(GameConst.CLASSES.HIDDEN);
        let randomGuestName = 'guest-'+sc.randomChars(12);
        let userName = this.gameManager.config.getWithoutLogs('client/general/users/allowGuestUserName', false)
            ? this.gameDom.getElement(selectors.GUEST.USERNAME).value
            : randomGuestName;
        let formData = {
            formId: this.form.id,
            username: userName,
            password: userName,
            rePassword: userName,
            isGuest: true
        };
        this.gameManager.startGame(formData, true);
    });
    return true;
}

The username sent by the client is not the final one: the server always replaces it (see allowGuestUserName in Configuration Options).

Form element: #guest-form in theme/default/index.html.

Key logic:

If availableGuestRooms is empty: form hidden.
If client/general/users/allowGuest is false: form hidden.
Otherwise: form visible and functional.

Complete Flow

Database (rooms table and config table):
- server/players/guestUser/allowOnRooms config row (installed as 1: every room allows guests).
- With the row at 0: customData: {"allowGuest": true} on each guest room.
Server - RoomsManager.loadRooms():
- Loads all rooms from the database.
- Calls fetchGuestRooms() to identify guest-allowed rooms (all of them, or the filterGuestRooms() result when allowOnRooms is off).
- Creates the availableRoomsGuest join gate and the registrationAvailableRoomsGuest and loginAvailableRoomsGuest lists.
Server - RoomsManager.defineRoomsInGameServer():
- Assigns the guest rooms to config.client.rooms.selection.availableRooms (registrationGuest and loginGuest, next to the regular lists).
Server - ServerManager.startGameServerInstance():
- Runs after initializeManagers() completes, and only when RELDENS_CREATE_CONFIG_FILE is 1 (0 skips both calls below).
- Calls HomepageLoader.createConfigFile(), which writes theme/<projectThemeName>/config.js (theme/default/config.js by default) with the guest rooms data.
- Calls themeManager.createClientBundle(), which bundles config.js into dist/ (only when RELDENS_ALLOW_RUN_BUNDLER is 1).
Client - the browser loads the index page built from theme/default/index.html:
- It includes the config.js script.
- The script sets window.reldensInitialConfig.
Client - GameManager constructor:
- Reads window.reldensInitialConfig.
- Merges it into this.config.
Client - ClientStartHandler.clientStart():
- Creates GuestFormHandler.
- Calls activateGuest().
Client - GuestFormHandler.activateGuest():
- Reads client/rooms/selection/availableRooms/registrationGuest.
- If empty: hides the form.
- If not empty: shows the form and attaches the submit handler.

Configuration Options

Server-side configs

server/players/guestUser/allowOnRooms
- Type: boolean.
- Default: installed as 1 by the basic configuration (code fallback false when the row is missing).
- Effect: if 1, all rooms allow guests (ignores customData.allowGuest); set it to 0 to use customData.allowGuest.
server/players/guestsUser/emailDomain
- Type: string.
- Default: not installed; when the row is missing or empty ServerConfigEnricher.enrichGuestsEmailDomain() fills it with RELDENS_GUESTS_EMAIL_DOMAIN (default @guest-reldens.com).
- Effect: email domain for guest accounts.
security/guests/maxPerIp (scope server)
- Type: number.
- Default: installed as 20, overrides RELDENS_GUESTS_MAX_PER_IP (the environment value only applies when the row is missing).
- Effect: guest accounts created per address, see IP Lists and Login Blocks.

Client-side configs

client/general/users/allowGuest
- Type: boolean.
- Default: client config row installed as 1 (code fallback false when the row is missing).
- Effect: master switch for the guest login feature: the client hides the guest form and UserRegistration.processGuestRequest() rejects the guest requests when it is off.
client/general/users/allowGuestUserName
- Type: boolean.
- Default: false (not installed).
- Effect: the server always generates the guest username as guest-<time>-<8 random chars> in UserRegistration.overrideWithGuestData() (lib/game/server/user-registration.js). With the flag on, the client sends the typed name and the server appends it cleaned (only letters, digits and dashes, max 20 chars) as a suffix; with the flag off the client sends a random name that the server ignores.

let generatedGuestName = 'guest-'+sc.getTime()+'-'+sc.randomChars(8);
userData.username = this.allowGuestUserName
    ? generatedGuestName+'-'+String(userData.username).replace(/[^a-zA-Z0-9-]/g, '').substring(0, 20)
    : generatedGuestName;

Environment variables

RELDENS_CREATE_CONFIG_FILE
- Type: number (0 or 1).
- Default: 1.
- Effect: controls whether the config.js file is created and the client bundle step runs after rooms are configured; 0 skips both.
RELDENS_GUESTS_EMAIL_DOMAIN
- Type: string.
- Default: @guest-reldens.com.
- Effect: email domain for guest user accounts, only used when the server/players/guestsUser/emailDomain row is missing or empty.
RELDENS_GUESTS_MAX_PER_IP
- Type: number.
- Default: 20.
- Effect: overridden by the installed security/guests/maxPerIp config row.

Testing the Guest System

Database setup:

-- Enable guest on specific room
UPDATE rooms
SET customData = '{"allowGuest": true}'
WHERE name = 'town';

-- Disable guest on specific room
UPDATE rooms
SET customData = '{"allowGuest": false}'
WHERE name = 'forest';

Remember these rows only apply when server/players/guestUser/allowOnRooms is 0.

Guest Login Flow

The guest form sends isGuest: true (the client sets isNewUser: true for every guest request).
LoginManager.processUserRequest() sends new guests to UserRegistration.processGuestRequest() (lib/game/server/user-registration.js): it rejects the request when guests are disabled (client/general/users/allowGuest) or the address reached the security/guests/maxPerIp limit (the config row overrides RELDENS_GUESTS_MAX_PER_IP), then overrideWithGuestData() generates the username, the email (with the guest email domain) and a random password, and register() creates the user with the guest role.
RoomGame.onJoin() (lib/rooms/server/game.js) sends the generated password back as guestPassword in the START_GAME message. The client keeps it only in memory (GameManager.initEngine()) and uses it to join the scene and feature rooms.
Every later login of an existing guest goes through LoginManager.isValidGuestLogin(): it is only accepted while the guest is active in the game room. Once the guest leaves the game (tab closed, disconnection) nobody can log into that account again, the password is never stored on the client.

A guest account is therefore disposable: its data is only reachable during the session that created it.

Guests Cleanup

GuestsCleanup (lib/users/server/guests-cleanup.js) removes the guest accounts that were not used for a while. It is created and started by the users plugin on reldens.serverReady (lib/users/server/plugin.js).

Configuration

server/players/guestUser/cleanupEnabled - the basic configuration installs it as 0; as every configuration row it wins over RELDENS_GUESTS_CLEANUP_ENABLED, so set the row to 1 to enable the cleanup.
server/players/guestUser/cleanupAfterMs (installed as 604800000, 7 days, overrides RELDENS_GUESTS_CLEANUP_AFTER_MS) - time without activity before a guest is removed.
server/players/guestUser/cleanupIntervalMs (installed as 3600000, 1 hour, overrides RELDENS_GUESTS_CLEANUP_INTERVAL_MS) - time between runs; the cleanup does not start when the interval is not lower than the cleanup time, nor without a guest role ID.

Run

Runs never overlap: a run started while another one is running is skipped.
UsersManager.touchGuests() refreshes updated_at of the guests with an active session on this server, so the other servers sharing the database do not remove them.
UsersManager.loadGuestsOlderThan() loads the guests whose updated_at is older than the cleanup time, with their players.
Guests with an active session on this server are skipped.
UsersManager.deleteGuestUser() removes each remaining guest.

Guest deletion (UsersManager.deleteGuestUser())

Skipped when one of the guest players owns a clan (the clan owner foreign key has no delete cascade).
Claim: a conditional update bans the guest only while it is still a guest and its updated_at is still older than the cleanup time. When no row is updated the guest was used again (on any server) and it is kept. The ban makes any login during the deletion fail.
Deletes, in order: the quests progress of each player (no foreign key), each player (the player stats, state, inventory, skills, scores and the other player tables cascade), the user logins, the user locale and the user.
When a step fails, the error is logged and the guest status and updated_at are restored to the loaded values. Restoring updated_at matters: the claim and the restore change the row, and the column updates itself on every change (ON UPDATE CURRENT_TIMESTAMP), which would hide the guest from the next runs for another full cleanup time. With the original value the next run loads the guest again and deletes whatever is left, so no orphan rows remain.

A failed guest never stops the run, the next guest is processed.

Code References

Key files:

lib/rooms/server/manager.js - room loading and guest filtering
lib/rooms/server/login.js - validateRoom(), the guest rooms join gate
lib/game/server/manager.js - config file creation timing
lib/game/server/homepage-loader.js - config file generation
lib/game/client/game-manager.js - config loading
lib/game/client/handlers/client-start-handler.js - form initialization
lib/game/client/handlers/guest-form-handler.js - guest form logic
lib/game/server/login-manager.js - guest requests routing and isValidGuestLogin()
lib/game/server/user-registration.js - guest account creation
lib/rooms/server/game.js - guestPassword in the START_GAME message
lib/users/server/guests-cleanup.js - guests cleanup runs
lib/users/server/manager.js - guests claim and deletion

Database:

Table: rooms
Column: customData (JSON)
Field: allowGuest (boolean)

Config paths:

Server: server/players/guestUser/allowOnRooms
Server: server/players/guestsUser/emailDomain
Server: server/players/guestUser/cleanupEnabled, cleanupAfterMs, cleanupIntervalMs
Server: server/security/guests/maxPerIp
Client: client/general/users/allowGuest
Client: client/general/users/allowGuestUserName
Client: client/rooms/selection/availableRooms/registrationGuest
Client: client/rooms/selection/availableRooms/loginGuest
